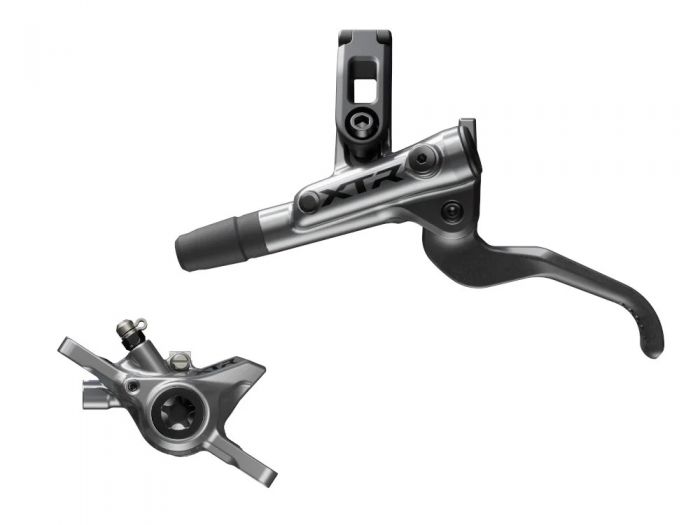

SHIMANO XTR két dugattyús első tárcsafék BL-M9200 + BR-M9200

SHIMANO XTR disc brake 2-piston BL-M9200 + BR-M9200 | front wheel

Robust. Intuitive. Consistent. - is the motto for the new XTR M9200 groupset. With it, Shimano and the bike community are celebrating the rebirth of Di2 technology on their top model. And at the very highest level. Thanks to contemporary wireless control, perfect functionality, a 12-speed drivetrain and the usual outstanding build quality, you'll be rushing from victory to victory and giving the competition a run for their money.

The performance of the XTR brakes will also impress you once again. Despite its low weight, the M9200 Cross Country version leaves nothing to be desired in terms of deceleration. At first glance, the BL-M9200 lever unit has hardly changed from its predecessor. It is still very comfortable to hold and allows high deceleration values with little effort. Of course, the grip width can be individually adjusted. Possible twisting is suppressed by the small contact point close to the handle, which creates a much more direct and sensitive braking feel.
The brake system's sealing system has been completely revised and may only be filled with LV (low viscosity) mineral oil. The advantage of this is the higher performance of the brake across practically all temperature ranges, which means you can also tackle longer downhill rides in a relaxed manner and pressure point fluctuations are a thing of the past. In addition, the response behavior of the individual components to each other is significantly accelerated.
The proven SM-BH90 hydraulic hose is used for the connection to the brake calliper. It is flexible enough to negotiate even tighter radii, but also transmits all deceleration commands without loss.
The power of the brake calliper is not visible from the outside. Its filigree appearance blends in perfectly with any frame, but the 2 pistons still have a good grip and bring you to a safe stop in any riding situation. Revised Brake Pads bring calm to the system and prevent annoying rattling even on bumpy roads. To reduce the weight, the caliper is made of a magnesium alloy, which ensures high rigidity and dissipates sufficient heat. Bleeding the XTR M9200 series is also very easy thanks to the one-way bleeding technology and can be done by anyone with a little manual skill.

Area of application: Cross Country
Brake caliper material: Magnesium
Brake lever material: Carbon
Housing material: Magnesium, aluminum
Material mounting bolts: Steel
Piston: 2
Brake mounting: Postmount
Recommended brake rotor: Shimano RT-CL 900
Brake fluid: Shimano LV (Low Viscosity) mineral oil only
Brake hose: Plastic
Brake Pad: Resin brake pads with cooling fins
Brake lever design: 2 fingers
Reach adjustment: yes, with 2 mm Allen key
Pressure point adjustment: no
Mounting: left
Clamp: split
Cable length: 1000 mm
Color: shiny grey-silver
Weight: 202g
