SHIMANO Deore XT négy dugattyús fékszett BL-M8200 + BR-M8220

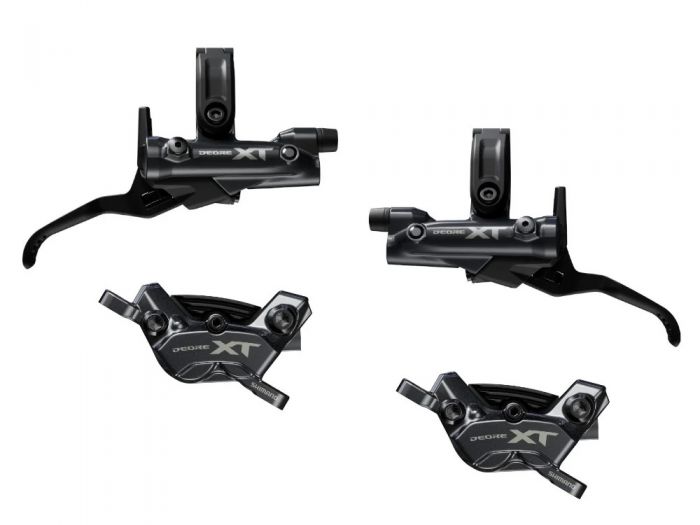

SHIMANO Deore XT disc brake 4-piston BL-M8200 + BR-M8220 | SET

Since the Deore XT groupset revolutionized the mountain bike world in 1980, it has been synonymous with reliability, durability and functionality. Over the years, it has been continuously optimized and improved and is still regarded as a pioneer in the bicycle industry. Nevertheless, Shimano still managed to make a big leap forward with the Di2 M8200 version. Thanks to modern wireless control, perfect performance, 12-speed drivetrain and the usual outstanding build quality, there are no limits to your bike dreams and you will have a loyal companion for your adventures.

The performance of the Deore XT brakes will also impress you once again. The powerful M8220 Enduro version in particular leaves nothing to be desired in terms of deceleration.

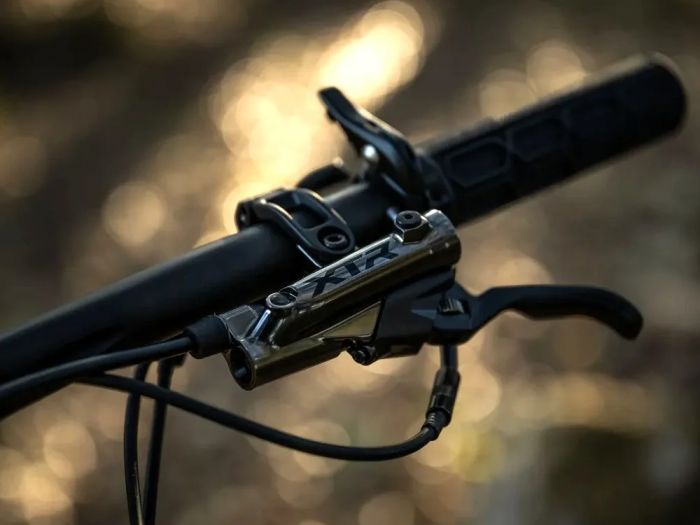

The new design catches the eye at first glance. The oil reservoir, which is parallel to the handlebars, and the new cable outlet ensure a clean and tidy look. The small contact point near the grip suppresses any possible twisting and thus creates a much more direct and sensitive braking feel. However, you will be impressed above all by the inner values. The pivot point is closer to the handlebars, which is why the path of the brake lever follows the arc of the finger more effectively and creates significantly more comfortable ergonomics.Thanks to the updated servo wave technology, very little manual force is still required, and the grip width can of course still be individually adjusted without tools using a rotary wheel.
The brake system's sealing system has also been modified and may only be filled with LV (low viscosity) mineral oil. The advantage of this is the higher performance of the brake across practically all temperature ranges, which means that you can also tackle longer downhill rides in a relaxed manner and pressure point fluctuations are a thing of the past. In addition, the response behavior of the individual components to each other is significantly accelerated.
The proven SM-BH90 hydraulic hose is used for the connection to the brake calliper. It is flexible enough to negotiate even tighter radii, but also transmits all deceleration commands without loss.

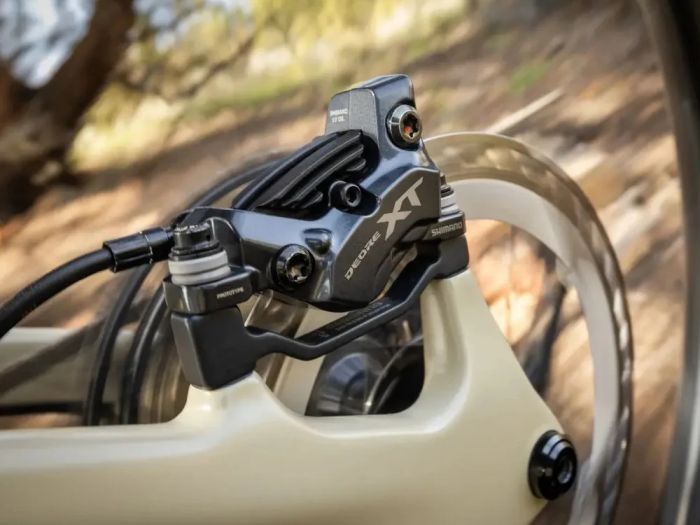

The power of the brake calliper is not visible from the outside. Its filigree appearance blends in perfectly with any frame, yet the 4 pistons apply the brakes mercilessly and bring you to a safe stop in any riding situation. Revised Brake Pads bring calm to the system and prevent annoying rattling even on bumpy roads. With their cooling fins, together with the design of the calliper and the high-quality aluminum, they guarantee rapid heat dissipation under continuous use.


Technical data:

• Area of application: All Mountain, Enduro
• Brake caliper material: Aluminum
• Brake lever material: Aluminum
• Housing material: Aluminum
• Mounting bolt material: Steel
• Piston: 4
• Brake mounting: Postmount
• Recommended brake rotor: Shimano RT-CL 800
• Brake fluid: Shimano LV (Low Viscosity) mineral oil only
• Brake hose: Plastic
• Brake Pad: Resin brake pads with cooling fins
• Brake lever design: 2 fingers
• Grip width adjustment: yes, tool-free via adjustment wheel
• Pressure point adjustment: no
• Mounting: left
• Clamp: split
• Cable length: front 1000 mm | 1700 mm
• Color: black
• Weight: 648g (set), 316g (front wheel), 332g (rear wheel)

Scope of delivery:

• 1x SHIMANO Deore XT disc brake 4-piston BL-M8200 + BR-M8220 | front wheel, completely filled incl. resin Brake Pads with cooling fins
• 1x SHIMANO Deore XT disc brake 4-piston BL-M8200 + BR-M8220 | rear wheel, completely filled incl. resin Brake Pads with cooling fins
• 1x bottle of SHIMANO LV (Low Viscosity) mineral oil, 100 ml each
• 2 pairs of resin Brake Pads
