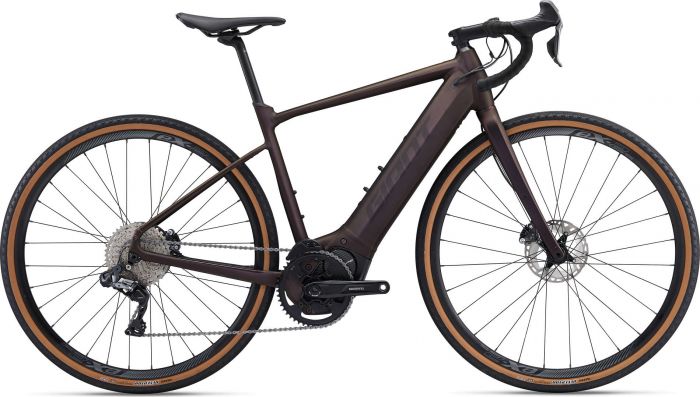

GIANT REVOLT E+ 2022

Unlimited adventure

Powerful SyncDrive Pro system powered by Shimano, lightweight ALUXX SL aluminum frame, smooth-riding tubeless tires and a comfortable D-Fuse seatpost give you the ability to ride any road, any route.

Powerful, integrated battery

All-new EnergyPak Smart Compact 500 battery delivers long-distance pedaling support and is seamlessly integrated into the frame for a sleek overall profile.

System simplicity

With the press of the simple RideControl Switch on/off button on the top tube, you are ready to go. The SmartAssist mode keeps you spinning without any worries. ANT+ capability further allows you to connect a bike computer of choice.

RANGE

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

ENERGYPAK SMART 500 / SYNCDRIVE PRO

• Extreme: 50 KM
• Good: 100 KM
• Ideal: 160 KM

• Motor: SyncDrive Pro, 85Nm, Powered by Shimano EP8

• Kezelő: RideControl GO, frame integrated, Support up/down from STI levers

• Kijelző: ANT+ Wireless display compatible

• Akkumulátor: EnergyPak Compact 500Wh EnergyPak Plus range extender compatible

• Méretek: S, M, ML, L, XL

• Szín: Rosewood

• Váz: ALUXX Aluminum

• Villa: Advanced-grade composite,12x100 thru-axle

• Rugóstag: -

• Kormány: Giant Contact XR D-Fuse, 31.85° back sweep, flared drop

• Grips: Giant Connect tape

• Stucni: Giant Contact

• Nyeregcső: Giant D-Fuse SL, composite

• Nyereg: Giant Approach

• Pedálok: Aluminum Platform

• Váltókarok: Shimano GRX Di2 ST-RX815-R/L 1x11speed

• Első váltó: -

• Hátsó váltó: Shimano GRX Di2 RD-RX817

• Fékek: Shimano BR-RX810, hydraulic disc, 180mm

• Fékkarok: Shimano ST-RX815 hydraulic disc

• Fogaskoszorú: Shimano CS-M5100-11, 11-42, 11-speed

• Lánc: KMC e.11 Turbo, EcoProteq

• Hajtómű: Shimano FC-EM600 crankarm Shimano SM-CRE80-R, 47T chainring

• Középcsapágy: -

• Felnik: Giant eX 2, Tubeless Ready, 700c Aluminium

• Agyak: Giant Performance Tracker Road, Sealed Bearing

• Küllők: Sapim E-Lite [r] Race [f]

• Külsők: Maxxis Receptor, EXO, Skinwall, 700x40c (622x40), Tubeless, w/o Reflex

• Kiegészítők: Tubeless kit (liquid, valves, levers, manual, tool)
